4-Post Lift

4-Post Lift

Suitable for class 4 vehicles up to 4.0 tonnes and class 7 vehicles,
including motorhomes up to 5.0 tonnes

Crypton’s 4-Post lifts are manufactured to the highest quality and safety features in the industry to ensure your MOT bay will have the reliability and efficiency it needs with an excellent return on investment. The product is available in a range of lifting capacities and platform lengths to accommodate your needs. From recessed to surface mounted, our 4-Post lifts are suitable for class 4 vehicles up to 4.0 tonnes and class 7 vehicles, including motorhomes up to 5.0 tonnes.

Each 4-Post lift is supplied with a brake pedal depressor, wheel play detectors and turntables as standard, as well as our popular checker plate surface. This not only is extremely attractive in your workshop, but provides maximum protection against corrosion.

With a modern dark grey appearance, our 4-Post lift provides a consistent brand image throughout our range, whilst blending in with other workshop equipment.
Specification Class IV C4L840/841 Class VII C4L870/871 Class VII C4L870/871L Class VII C4L874/875
Lifting capacity 4000kg 4000kg 5000kg 5000kg
Lifting height 1830mm 1830mm 1830mm 1830mm
Lowering time 45 sec 45 sec 45 sec 45 sec
Runway width 565mm 630mm 630mm 630mm
Runway length 4560mm 5200mm 5700mm 6500mm
Total width (inc posts) 3080mm 3230mm 3230mm 3230mm
Motor 3.0kW 3.0kW 3.0kW 3.0kW
Power supply 400/50 V/Hz 400/50 V/Hz 400/50 V/Hz 400/50 V/Hz
Supply fuse T16A T16A T16A T16A
↔️ Slide to view ↔️

INTERESTED IN THIS PRODUCT? NEED ADDITIONAL INFORMATION?

Get in touch with us today and our dedicated team will be available to assist you with your query.
We are available via phone, email or via our contact form

By submission, you agree and provide consent for Autoquip (GB) Garage Equipment Ltd to contact you, I also understand that we will only contact you in matters relating to your enquiry.

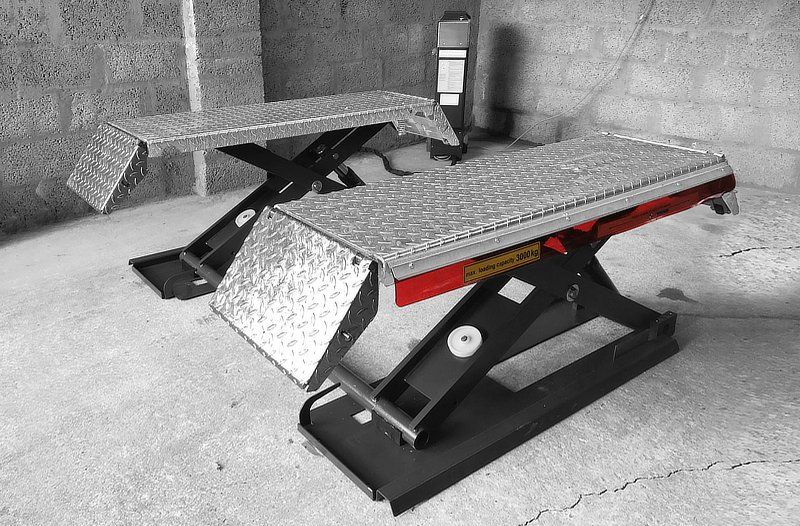

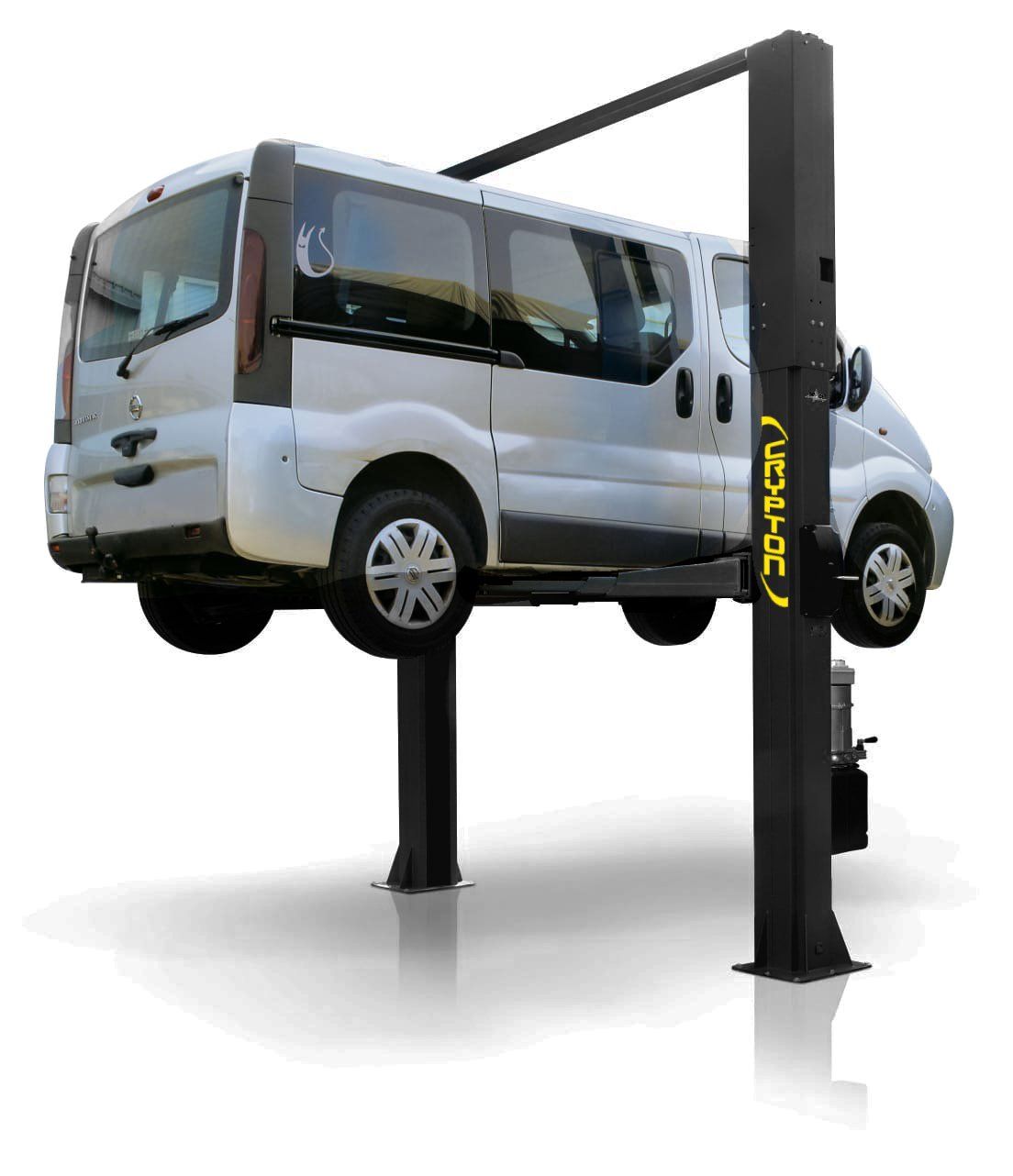

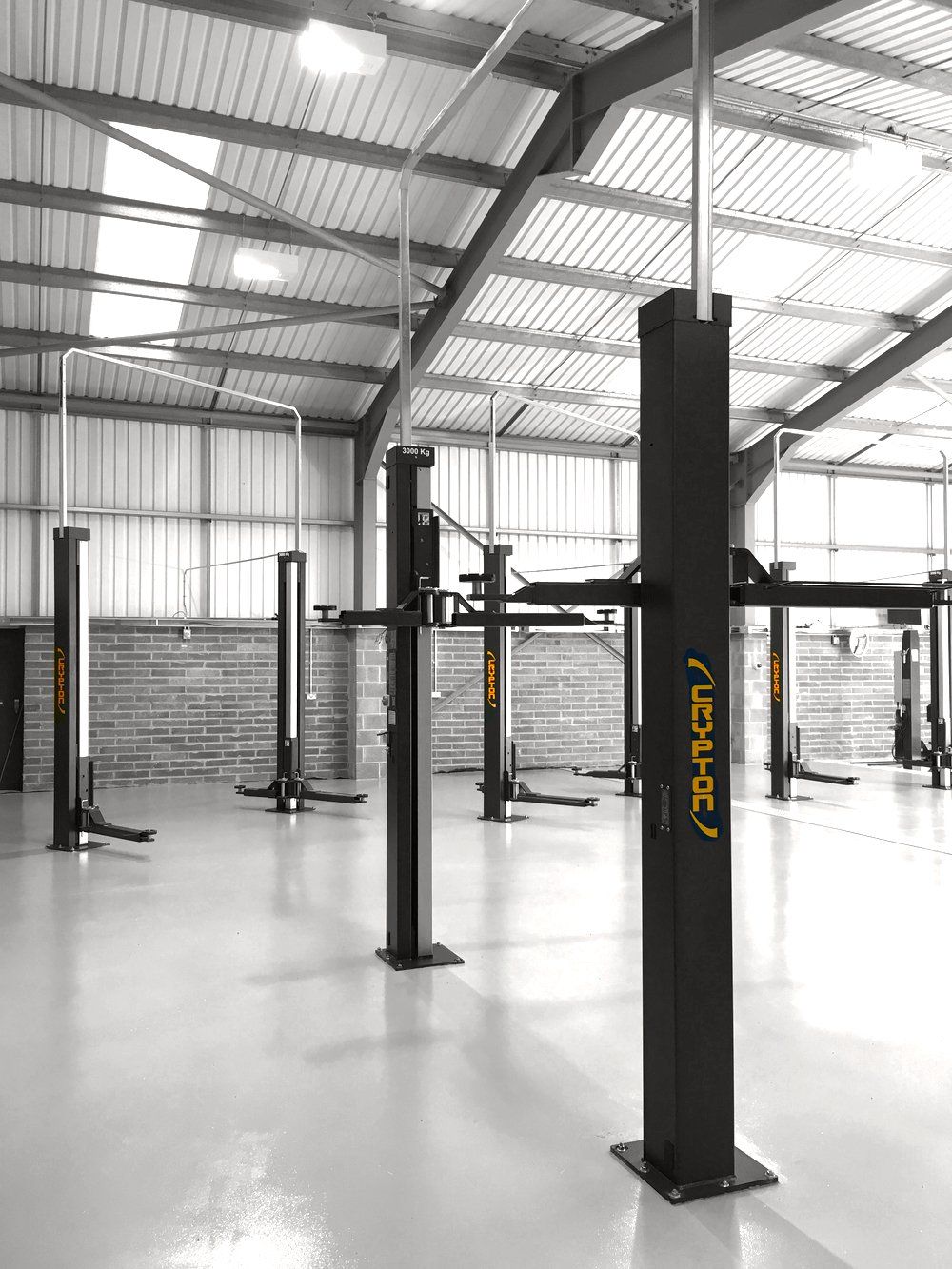

Related Lifts
