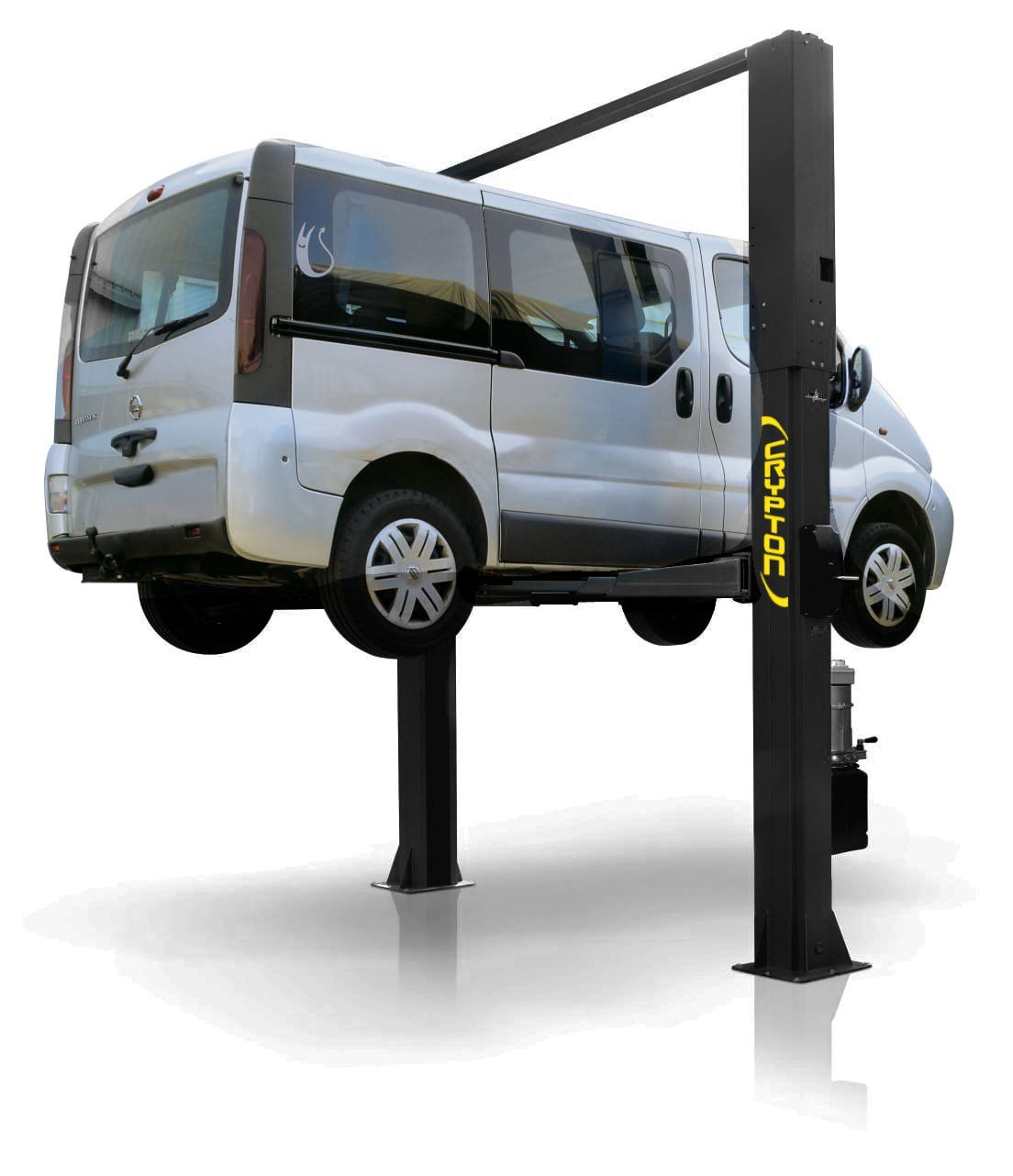

2-Post Lift 3T

Baseless with asymmetrical arms for maximum flexibility

This 2-post lift is electro-mechanically operated and has adjustable and asymmetrical lifting arms, which allows the arms to swivel 180°. This positions the vehicle off-centre to provide optimal door clearance to access the vehicle's interior. The arms are secured by an automatic locking device and the low-wear lifting nut is made of high-quality Nylatron.

Its baseless structure allows you to lift vehicles from the lowest lifting point. With its height-adjustable cable bridge, it offers flexible installation to fit into any vehicle workshop.

Its high-quality and robust construction has proven itself for over 20 years with more than 100,000 sold worldwide to assist mechanics in their everyday service tasks. What's more, the arms and columns are powder-coated to protect the lift against dirt and weather for a long-term investment.

Features

✓ Baseless for a low lifting point
✓ Adjustable asymmetric lifting arms
✓ Low wear Nylatron nut
✓ Adjustable width and height frame
✓ Twin motors for perfect synchronisation
✓ Resistant Poly-V belt
✓ LED display for simple and safe operation
✓ Manufactured with hard chrome cylinders
✓ Cylinders protected by galvanised covers
Brochures and Manuals

Download 2-Post Lift (C2L3000E) Flyer
Download 2-Post Lift (C2L3000E) Manual
Product Warranty

We are pleased to supply and install with 3 years warranty (UK mainland only)

Specification	C2L3000E
Lifting capacity	3000kg
Lifting height	2010mm
Lowest Lifting Point	95mm
Height of columns	2890mm
Overall height (adjustable)	3720-4120mm
Overall width	3000mm
Distance between columns	2460mm +/-10cm
Short arm	590-900mm
Long arm	940-1495mm
Lifting time	40 sec
Lowering time	40 sec
Power supply	3Ph, 400V, 50Hz
Motor	2x 1,5kW
Motor speed	1420 rpm
Sound level	≤70dB
Connection by customer	Fuse 16amp (motor rated trip)
Concrete	Quality: C20/25 Depth: 200mm
