SD20PHL / SD26PHL

SD20PHL / SD26PHL

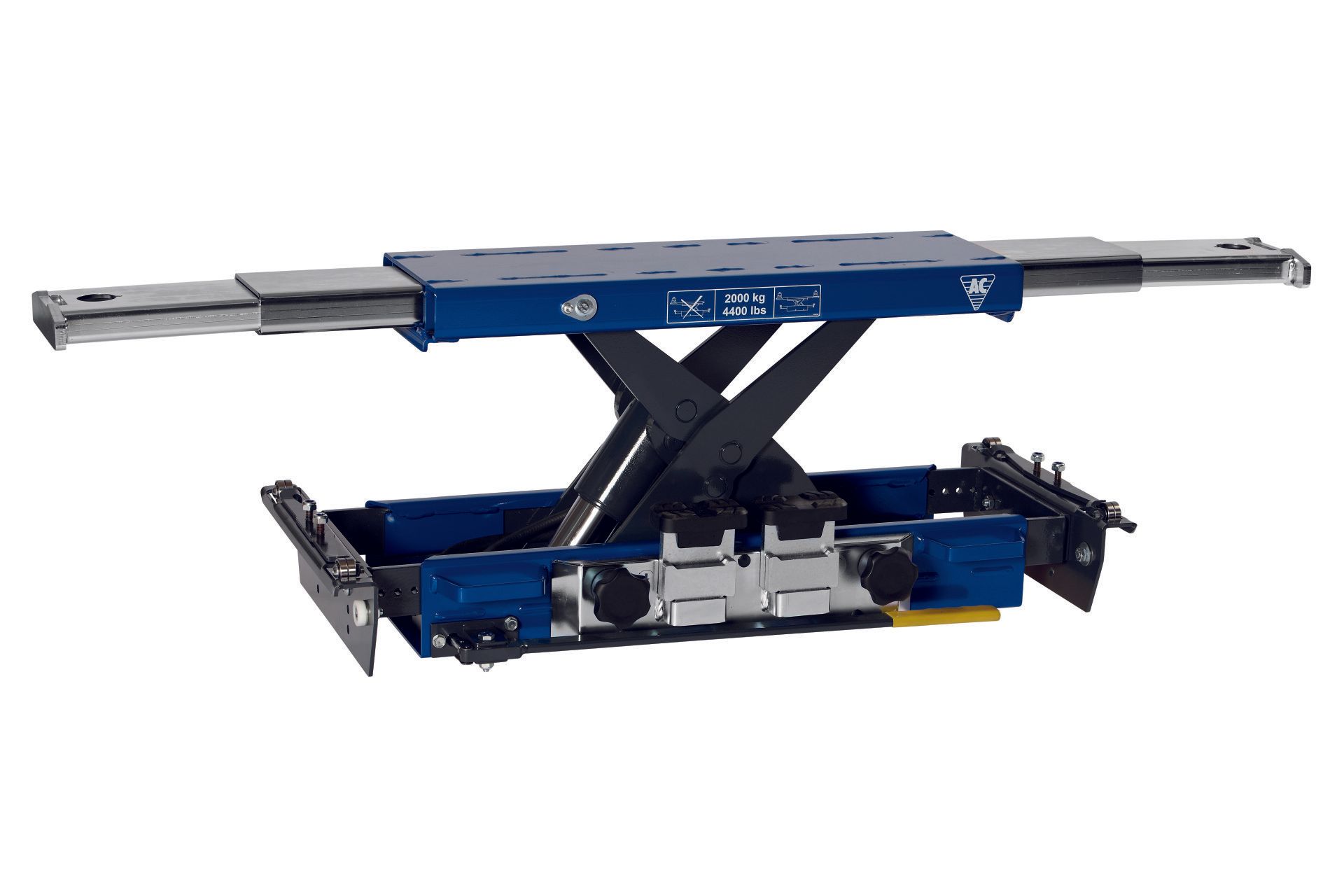

Air hydraulic jacking beam for passenger cars and vans

  • Features

    ✓ Quick and efficient lifting due to reliable and noiseless pump

    ✓ Low closed height of only 180 mm makes it suitable for vehicles with a low clearance

    ✓ Flexible top support beam can be extended up to 1610 mm

    ✓ Unique height adjustable support arm system – designed to fit all current lifts and pits (please order separately)

    ✓ Two-hand lowering operation with dead man’s release, automatic safety locking device and overload valve for optimum safety

    ✓ Supplied with 3 extension sets (10/40/85 mm) and rubber cushion for protection of car body


    Note: The support arms are not a part of the product and must be ordered separately.

  • Winning Offer Flyer
Specification SD20PHL SD26PHL
Capacity 2 t 2,6 t
Stroke 250 mm 250 mm
Min. height 180 mm 180 mm
Telescopic arms 780 - 1610 mm 780 - 1610 mm
Width (÷ support arms) 780 - 1180 mm 780 - 1180 mm
Lifting frame (height) 120 mm 120 mm
Lifting frame (depth) 250 mm 250 mm
Air supply 6 - 10 bar 6 - 10 bar
Air consumption 400 - 700 l/min 400 - 700 l/min
Weight (÷ support arms) 110 kg 110 kg
