SD40PHL

SD40PHL

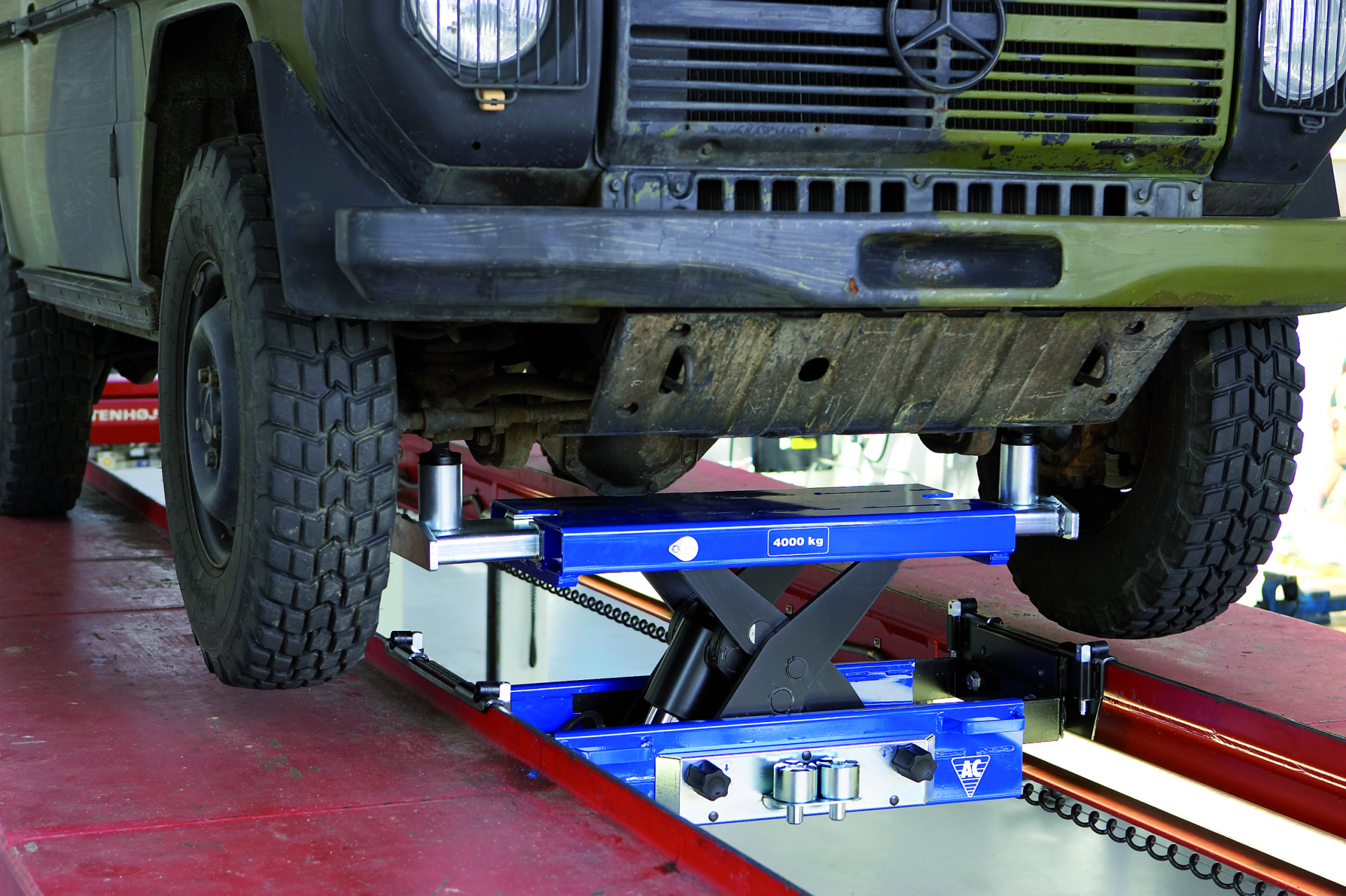

Air hydraulic jacking beam for passenger cars and vans

  • Features

    ✓ Strong and robust design makes it ideal for lifting heavy vehicles

    ✓ Low closed height of only 230 mm

    ✓ Flexible top support beam can be extended up to 1500 mm

    ✓ Unique height adjustable support arm system – designed to fit all current lifts and pits (please order separately)

    ✓ Two-hand lowering operation with dead man’s release, automatic safety locking device and overload valve for optimum safety

    ✓ Supplied with 2 extension sets (50/100 mm)


    Note: The support arms are not a part of the product and must be ordered separately.

  • Winning Offer Flyer
Specification SD40PHL
Capacity 4 t
Stroke 250 mm
Min. height 230 mm
Telescopic arms 780 - 1500 mm
Width (÷ support arms) 780 - 1220 mm
Lifting frame (height) 160 mm
Lifting frame (depth) 345 mm
Air supply 6 - 10 bar
Air consumption 400 - 700 l/min
Weight (÷ support arms) 175 kg
