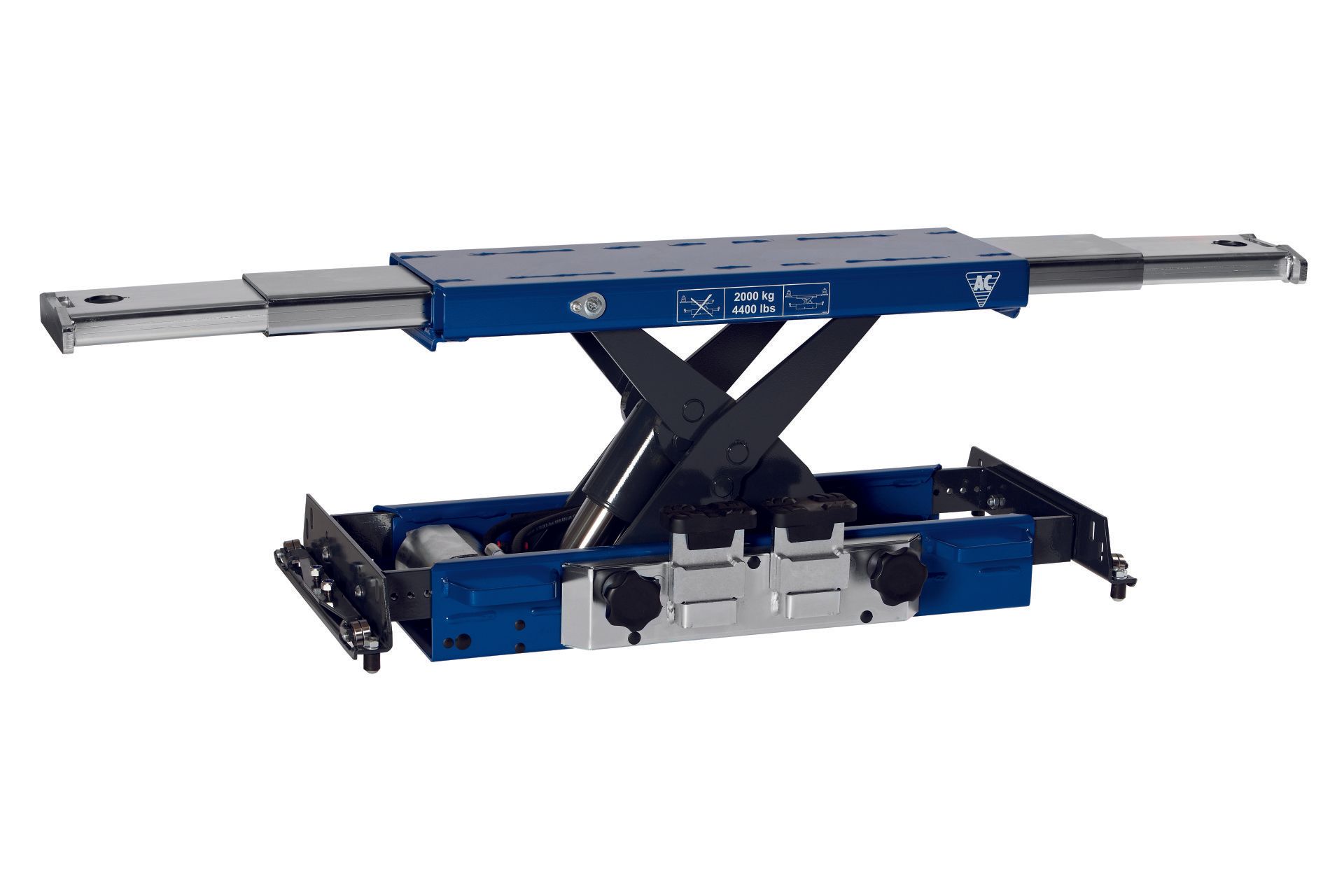

✓ Quick and efficient lifting due to manual double acting pump
✓ Low closed height of only 180 mm makes it suitable for vehicles with a low clearance
✓ Flexible top support beam can be extended up to 1610 mm
✓ Unique height adjustable support arm system – designed to fit all current lifts and pits (please order separately)
✓ Two-hand lowering operation with dead man’s release, automatic safety locking device and overload valve for optimum safety
✓ Supplied with 3 extension sets (10/40/85 mm) and rubber cushion for protection of car body
Note: The support arms are not a part of the product and must be ordered separately.
Specification | SD20L | SD26L |
---|---|---|
Capacity | 2 t | 2,6 t |
Stroke | 250 mm | 250 mm |
Min. height | 180 mm | 180 mm |
Telescopic arms | 780 - 1610 mm | 780 - 1610 mm |
Width (÷ support arms) | 780 - 1180 mm | 780 - 1180 mm |
Lifting frame (height) | 120 mm | 120 mm |
Lifting frame (depth) | 250 mm | 250 mm |
Air supply | ||
Air consumption | ||
Weight (÷ support arms) | 105 kg | 105 kg |
