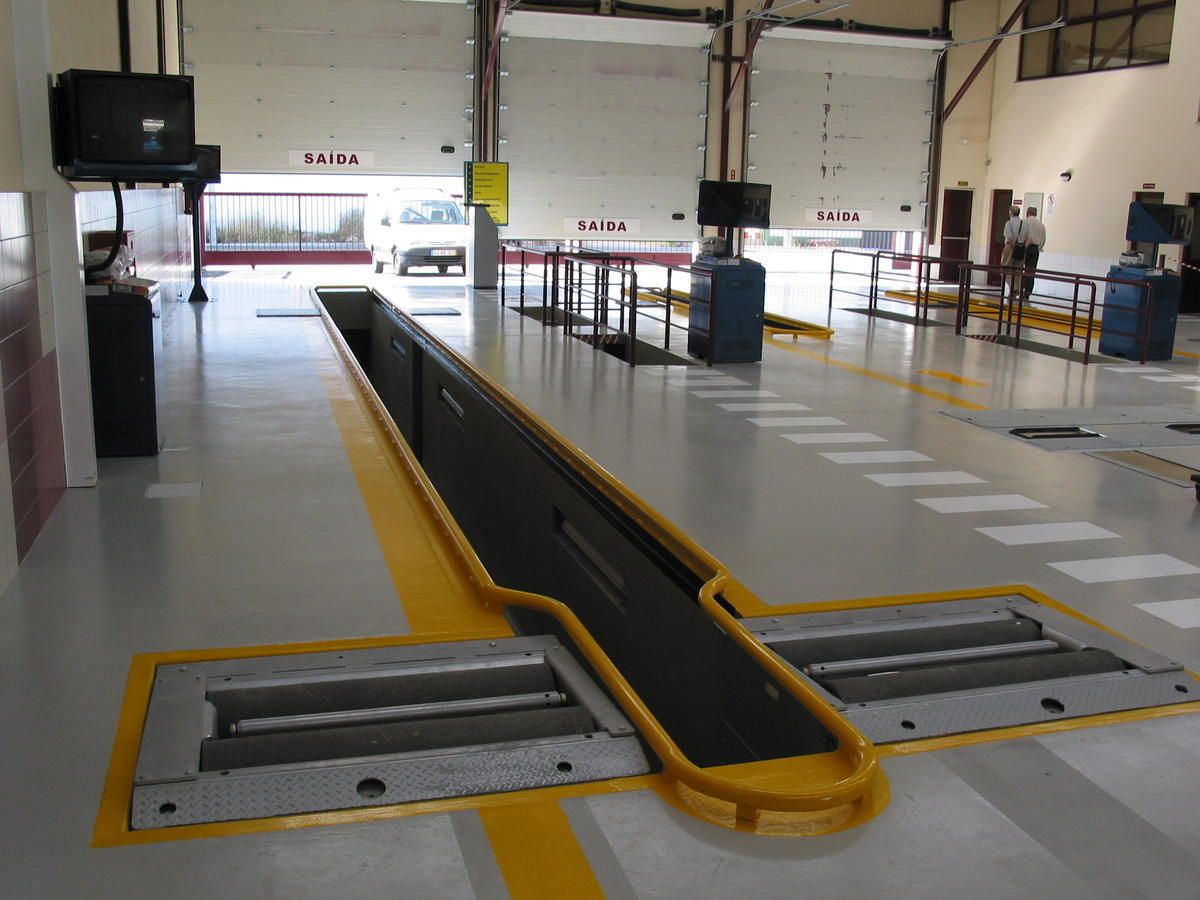

VTEQ 7000 Series Brake Tester

VTEQ 7000 Series

Heavy Duty Vehicle Roller Brake Tester 18T Bi-directional

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

The Brake 7001, HGV/ATF DVSA approved, ofers as standard all the features required to carry out commercial brake testing.

These include Roller Lock, Soft Start, bi-directional, 4WD, automatic weighing, remote control, Nord Motorgearboxes, Robust work station, PC package complete with 23” Monitor and Tablet operation, DVSA database. Options include space saving consuls, remote access, complete installation frames, shock absorber and side slip add on.

Specification	7000 Series
Size	2 x 1.140 x 1.427 x 650 mm
Maximum axle weight	18.000 Kg (20.000 Kg. Optional)
Rollers Size	1.150 x 271 mm
Roller Separation	475 mm
Test Speed	3 Km/h
Motors	2 x 11 kW
Friction Coeicient	Dry> 0,8 Humid > 0,6
Measurement Range	0 ÷ 40 kN
Power Supply	3 x 400V 50 / 60 Hz
Working Conditions	Temp -5 ÷ +40 ºC Relative Humidity < 95%
