Automated Brake Tester

Automated Brake Tester

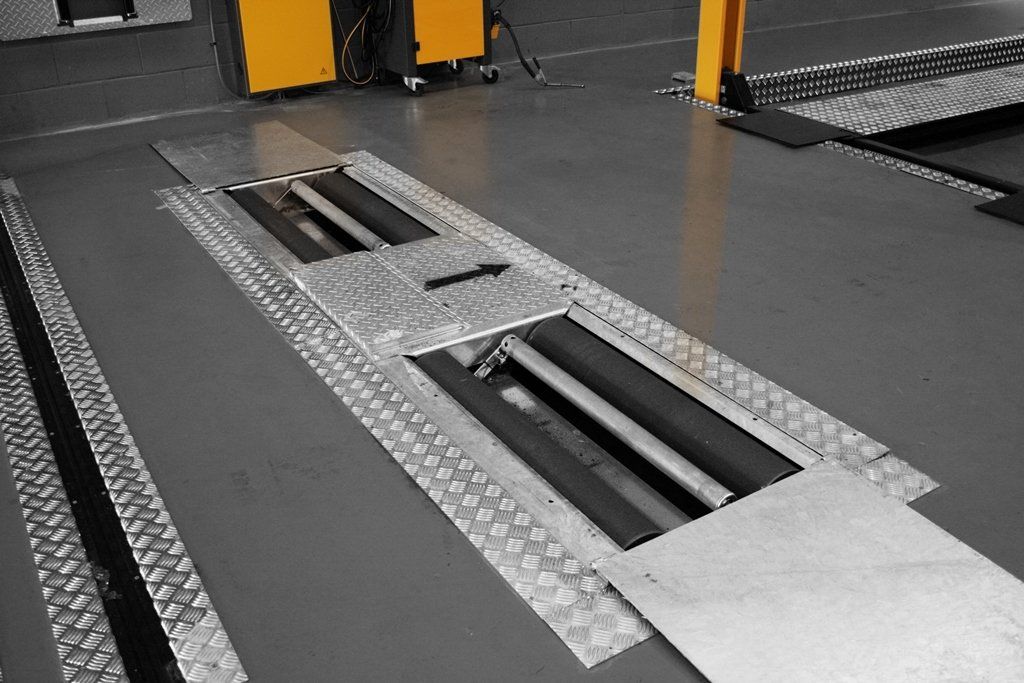

High-specification roller brake testers

Our high-specification roller brake testers have been developed to meet the latest DVSA regulations for connected MOT testing with quick and accurate results.

Crypton's Automated Brake Testers have an integrated weighing system that automatically calculates the braking efficiency of a vehicle. It is designed with a dimpled roller surface for maximum tyre protection and a coefficient similar to the road surface for accurate results. Easily operate from the vehicle with a user-friendly remote.
  • Features

    ✓ Connected Equipment - input vehicle data directly from the DVSA MOT Testing Service (MTS) system to the brake tester programme. Once the test is complete, results are transmitted back to the MTS automatically.

    ✓ Integrated weighing system automatically calculates brake efficiency

    ✓ Galvanised steel roller chassis and cover plates for a professional, robust and long life finish

    ✓ Dimpled roller surface offers tyre protection whilst providing a coefficient similar to the road surface for accurate results

    ✓ Operated by a remote control via Crypton's Control Station (option to add petrol and/or diesel emissions tester). The control centre includes a Windows 10 PC, keyboard and mouse with a dust/grease cover, printer and 23" coloured screen

    ✓ Requires an internet connection (not supplied) to the control centre

  • Optional
    • 4-wheel drive & motorbike adapters

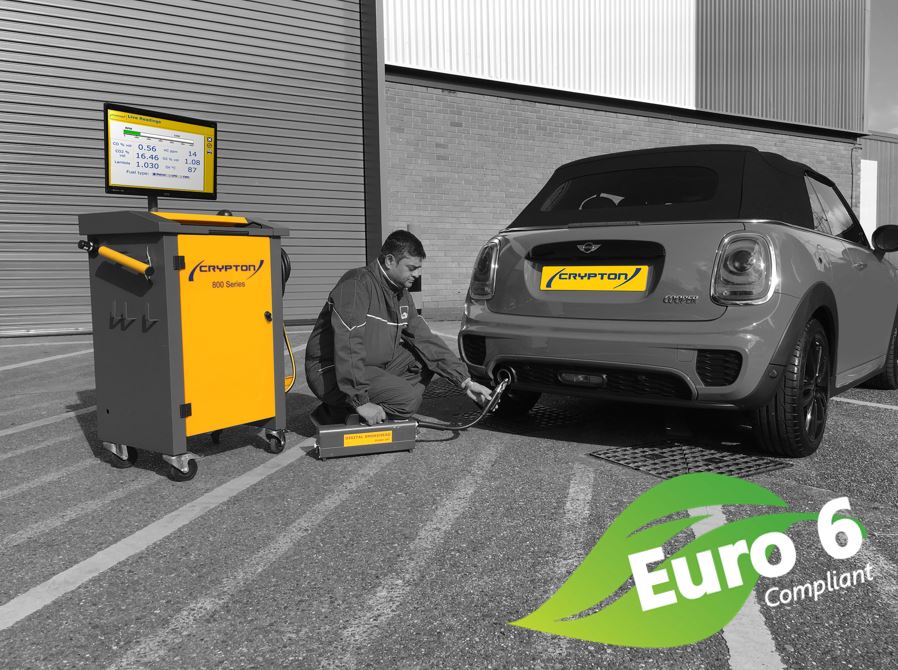

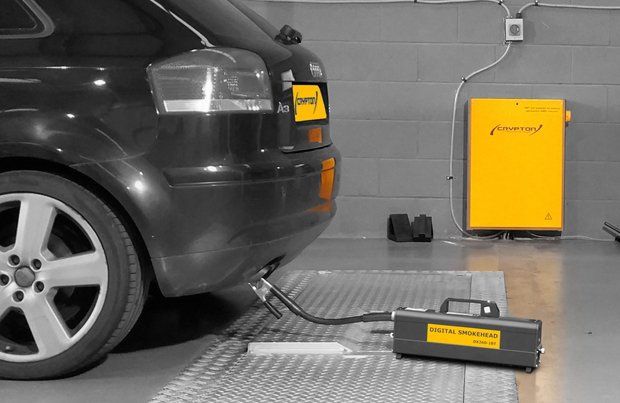

    • Add petrol and/or diesel emissions tester to the control centre
  • Brochures and Manuals

    Download Brake Tester - Flyer

    Download Brake Tester (Class 4 and 7) - Manual

    Download MOT Brochure

  • Product Warranty

    We are pleased to supply and install with 3 years warranty (UK mainland only)

Specification Class IV Class VII
Maximum axle weight 4000kg 4000kg
Max brake force per wheel 600kgf 1250kgf
Test speed 5km/h 2.62km/h
Roller diameter 182mm 200mm
Roller length 700mm 1,000mm
Roller surface plastic/emery coating plastic/emery coating
Width of axle to be tested 800 - 2200mm 800 - 2200mm
Supply fuse 25 AT 25 AT
Electrical connection 3 phase 400/50 V/Hz 3 phase 400/50 V/Hz
Maximum distance between roller set and control box 12m 12m
