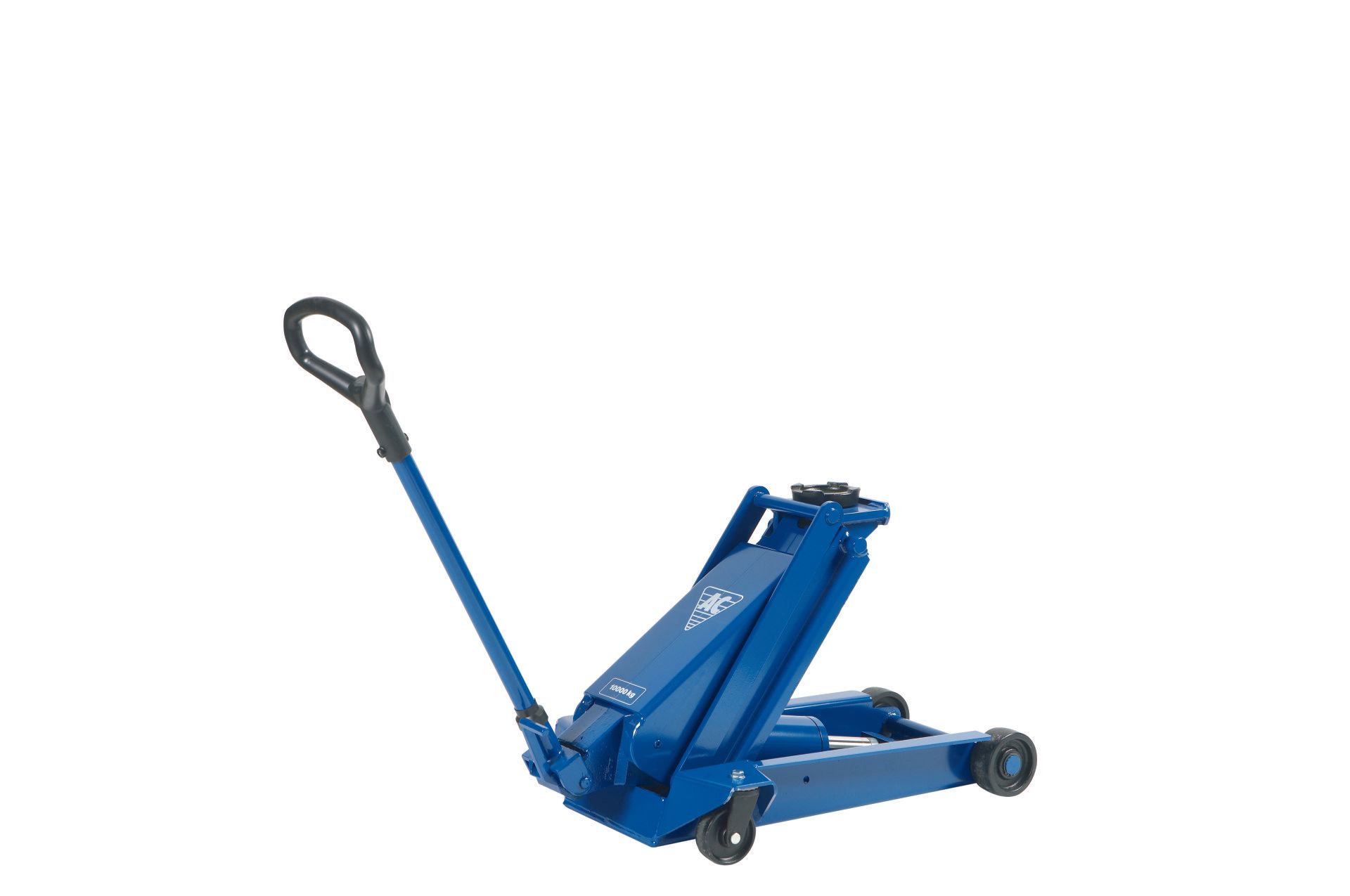

DK100Q / DK120Q

DK100Q / DK120Q

Jack for trucks, agricultural machinery & contractors’ machines

  • Features

    ✓ Low minimum height of only 150 mm

    ✓ Can be fitted with pneumatic tyres for easy manoeuvring (option)

    ✓ Wide and robust frame made of high-strength steel

    ✓ Fitted with quick-lift pedal for easy reach of lifting point

    ✓ Precise and safe control whilst lowering

    ✓ Manual dead man’s release for optimum safety when lowering

    ✓ Built-in safety overload valve

    ✓ Ergonomically designed handle ensuring positive and safe operation

  • Winning Offer Flyer

    Download Hydraulic Jacks

Specification DK100Q DK120Q
Capacity 10,0 t 12,0 t
Min. height 150 mm 150 mm
Max. height 585 mm 585 mm
Frame length 805 mm 805 mm
Handle length 1200 mm 1200 mm
Frame height 260 mm 260 mm
Width 530 mm 530 mm
Weight 118 kg 118 kg

INTERESTED IN THIS PRODUCT? NEED ADDITIONAL INFORMATION?

Get in touch with us today and our dedicated team will be available to assist you with your query.
We are available via phone, email or via our contact form

By submission, you agree and provide consent for Autoquip (GB) Garage Equipment Ltd to contact you, I also understand that we will only contact you in matters relating to your enquiry.
