SD32PHL

SD32PHL

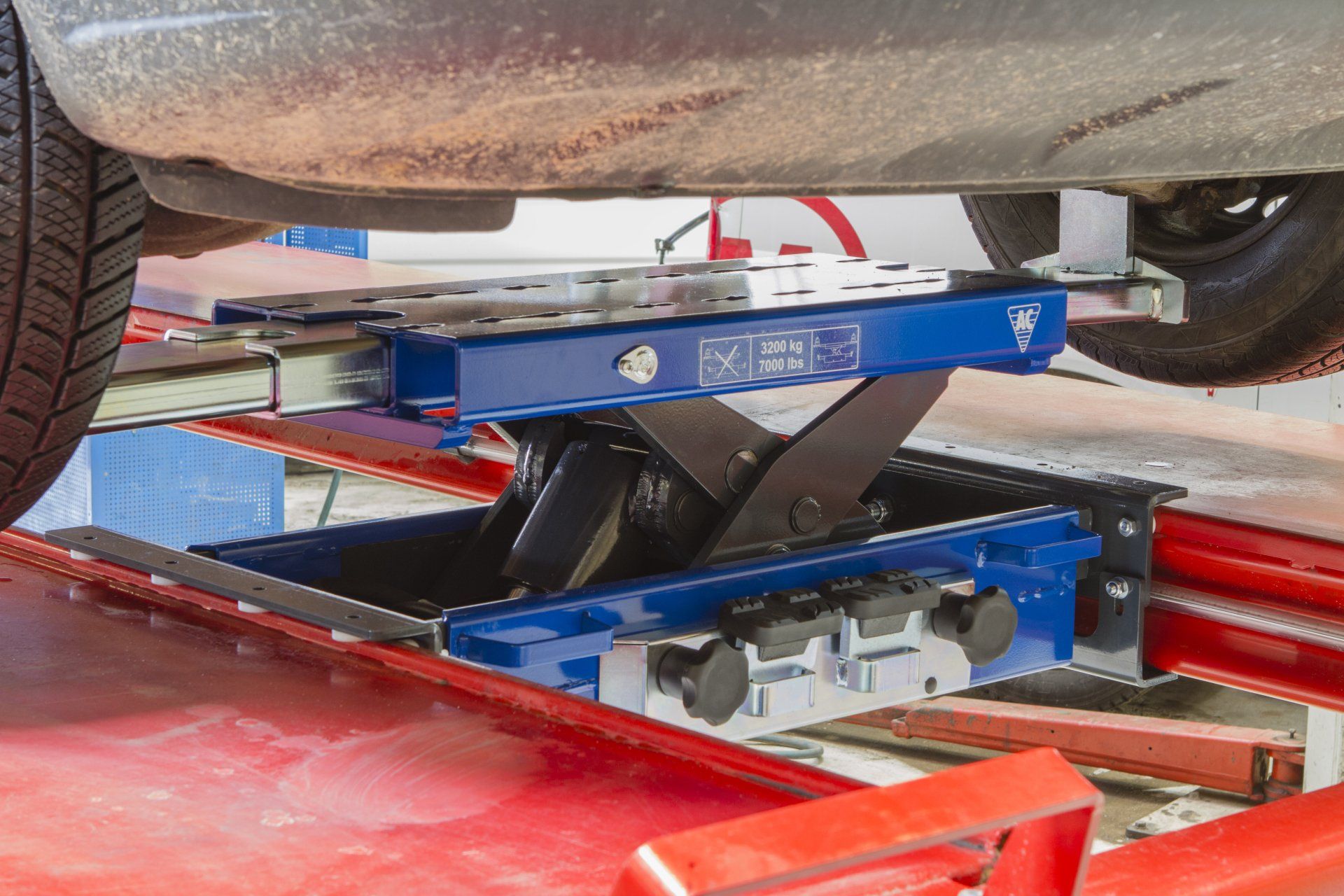

Air hydraulic jacking beam for passenger cars and vans

  • Features

    ✓ The capacity of 3,2 t ensures optimum use of lifts with 5-6 t capacity

    ✓ Low minimum height of 230 mm

    ✓ Flexible top support beam can be extended up to 1610 mm

    ✓ Unique height adjustable support arm system – designed to fit all current lifts and pits (please order separately)

    ✓ Two-hand lowering operation with dead man’s release, automatic safety locking device and overload valve for optimum safety

    ✓ Supplied with 3 extension sets (10/40/85 mm) and rubber cushion for protection of car body


    Note: The support arms are not a part of the product and must be ordered separately.

  • Winning Offer Flyer
Specification SD32PHL
Capacity 3,2 t
Stroke 250 mm
Min. height 230 mm
Telescopic arms 780 - 1610 mm
Width (÷ support arms) 780 - 1220 mm
Lifting frame (height) 160 mm
Lifting frame (depth) 345 mm
Air supply 6 - 10 bar
Air consumption 400 - 700 l/min
Weight (÷ support arms) 175 kg
